Máy đo độ dầy lớp phủ PCE-CT 28 0-1250μm/0.1μm, từ tính và không từ tính

Thông tin máy PCE-CT 28

Khoảng đo: 0 ~ 1250µm
Độ phân giải:
- 0.1 µm (trong khoảng 0.0 ~ 99.9 µm)
- 1 µm (ngoài khoảng trên).
Độ chính xác: ±2% hoặc 2.5 µm
Bề mặt đo nhỏ nhất: 6 x 6mm
Hình dạng đo( tối thiểu): Chỗ lồi : 5mm / Chỗ lõm : 60mm
Độ dầy bé nhất của vật liệu nền( sắt, thép, nhôm,…):
- 0.3mm (cho vật liệu từ tính)
- 0.1mm (Cho vật liệu không từ tính)
Màn hình: LCD 10mm
Nhiệt độ hoạt động: 0 ~ 50°C
Nguồn: 4 pin
Kích thước máy: 126 x 65 x 27mm
Khối lượng: 120g (bao gồm pin).
Hãng sản xuất: PCE ANH
Bảo hành: 12 tháng

Đặt hàng Máy đo độ dầy lớp phủ PCE-CT 28

Đánh giá sản phẩm

Sản phẩm Máy đo độ dầy lớp phủ PCE-CT 28 được cung cấp bởi Thiết bị đo Quang Minh luôn là sản phẩm chính hãng và được đánh giá cao về chất lượng với điểm số 9/10 bởi 5278 người bình chọn cho sản phẩm Máy đo độ dầy lớp phủ PCE-CT 28 0-1250μm/0.1μm, từ tính và không từ tính về chất lượng và giá.

Thông tin chi tiết

Thickness Meter to determines thickness of coating on steel or iron (F) and non-ferrous metals (N) with high range of measurement

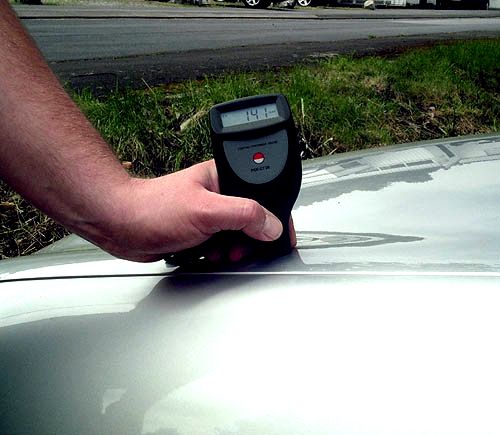

The PCE-CT 28 Thickness Meter for cars is for measuring the thickness of paint and plastic on ferrous or non-ferrous materials without damaging the coating's surface. The Thickness Meter stands out due to its high range of measurement. This thickness meter should be one of the tools used by technicians in areas of paint or lacquering such as in production, automotive body repair or quality control. The Thickness Meter is particularly useful in detecting damage to vehicles produced by an accident, for preventing possible damage or as a toll in auto body repair. Also, in the industrial sector, this device is essential for quality control in shipping and receiving and during production. It is ergonomincal with an integrated sensor and it shows results of measurements quickly and accurately. It was designed for non-magnetic coatings such as plastic, chrome, zinc, copper, etc. and insulation such as rubber, plastic, glass and paper over steel, iron, aluminium, brass and stainless steel. Thanks to its wide measurement range, the coating thickness detector is ideal for the naval and metal industries.

F / N: for materials including iron, steel, aluminium, copper, brass and stainless steel. instant results large measurement range vibrations do not influence readings Elastic lined measuring head to ensure accurate results and prevent wear. The v-slot simplifies the measurement on round surfaces acting as a reference or axis point. can be operated comfortably with only one hand thanks to its design and integrated sensor. optional ISO calibration certificate comes complete with battery, carrying case, calibration standards and user's manual	PCE-CT 28 Thickness Meter View or print the user's manual
Technical Specifications
Measurement range	0 to 1250µm
Resolution	0.1 µm (in a range of 0.0 to 99.9 µm) 1 µm (above the range)
Accuracy	±2% or 2.5 µm (highest reading is valid)
Minimum surface measurable	6 x 6mm
Minimum radial curve	convexed: 5mm / concaved: 60mm
Minimum thickness of material	0.3mm (for ferrous materials) 0.1mm (for non-ferrous materials)
Display	LCD with 4 x 10mm high digits
Operating temperature	0 to 50°C
Power	4 batteries
Dimensions	126 x 65 x 27mm
Weight	120g with batteries
Use for a Thickness Meter
Place the device on top of a surface and reading the value being displayed. It's that easy to read the thickness of paint, plastic, laminate, chrome, copper and brass upon steel, stainless steel, iron, and non-ferrous metals such as copper, aluminium and brass. Thanks to the standards that are included with the device, it can be calibrated at any time. Simply place the device on top of one of the calibration tiles. Ensure that the device is set correctly and flat while doing a calibration.
Delivery contents PCE-CT 28 Thickness Meter with integrated F/N sensor, carrying case, 4 batteries set of calibration standards and user's manual
